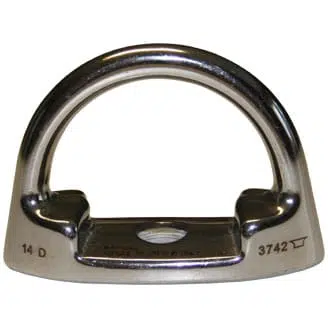

Anchorage Connector – Nickel

Anchorage Connector

• Drop Forged Stainless Steel
• 100% proof loaded to 3600 lb (16kN)
• Minimum tensile strength 10 000 lb (44,5kN)
• Available clearance hole & Recommended torque values :
  • 90-100 ft-lb for a 5/8 clearance hole (11 TPI 316SS bolt)
  • 125-135 ft-lb for a 3/4 clearance hole (10 TPI 316SS bolt)
• Offered in Clear Zinc Nickel to improve corrosion resistance
• Weight: 16,5 oz (468 g)

Warning : The recommended installation torque values listed for anchorage connectors are based on the use of the minimum hardware grades also listed. Any hardware substitution of different grades would require recalculation of appropriate installation torque values.
